1,Jiangsu Baolong's Chips Screens series are specialty equipment for wood chips production line. These are mainly used for separation of the different sizes of wood chips from the production process. The chips specifications are achieved through the use of different mesh sizes of the screens. This series of equipment are widely used in wood chips production lines of pulp and paper mills, MDF board and particle Board industries.

2,This series of wood Chips Screens are suitable for production capacity ranging from 15 to 200m3/h. Customer can select from a range of standard models in accordance with their requirement.

3,The main components of this series of Chips Screens are the frame, screen housing, screens,eccentric shaft parts, vibrating arm assembly and universal joints. Screen area as 15m2, better screening capacity complete with SKF bearings, ROSTA universal joints, high strength screen mesh, marking the performance more reliable.

BF14100 Vibrating chips Screen

 BF14150 Vibrating chips Screen

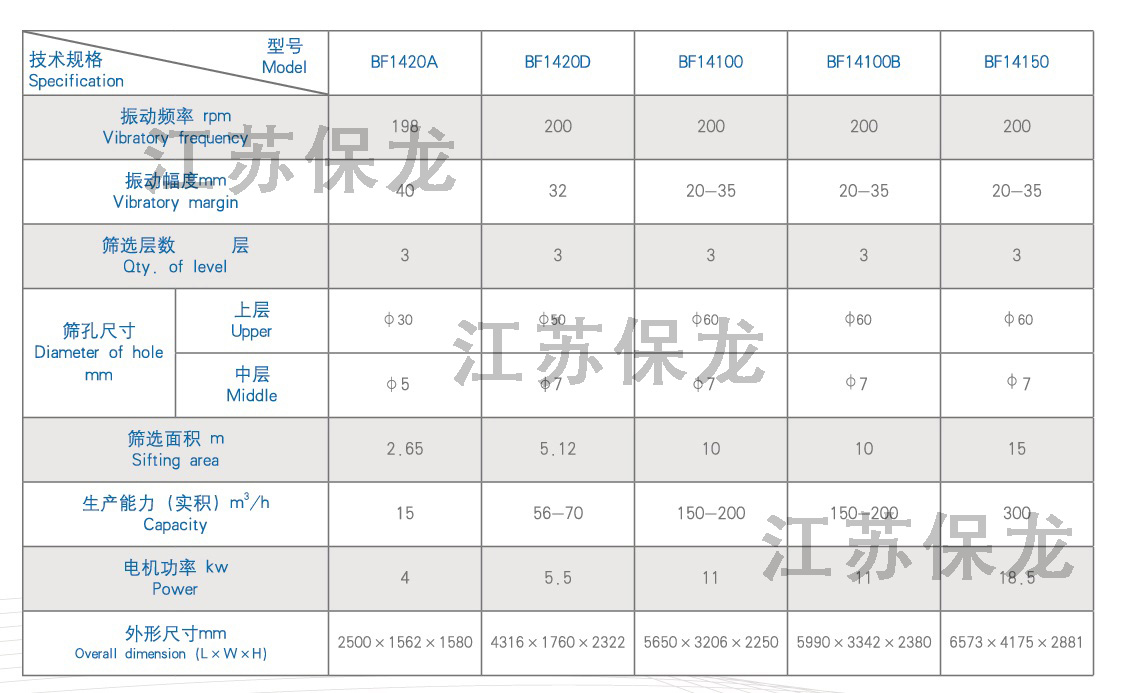

Main Technical Parameter of Chip Screen


                                       BF1450B Flake Screen

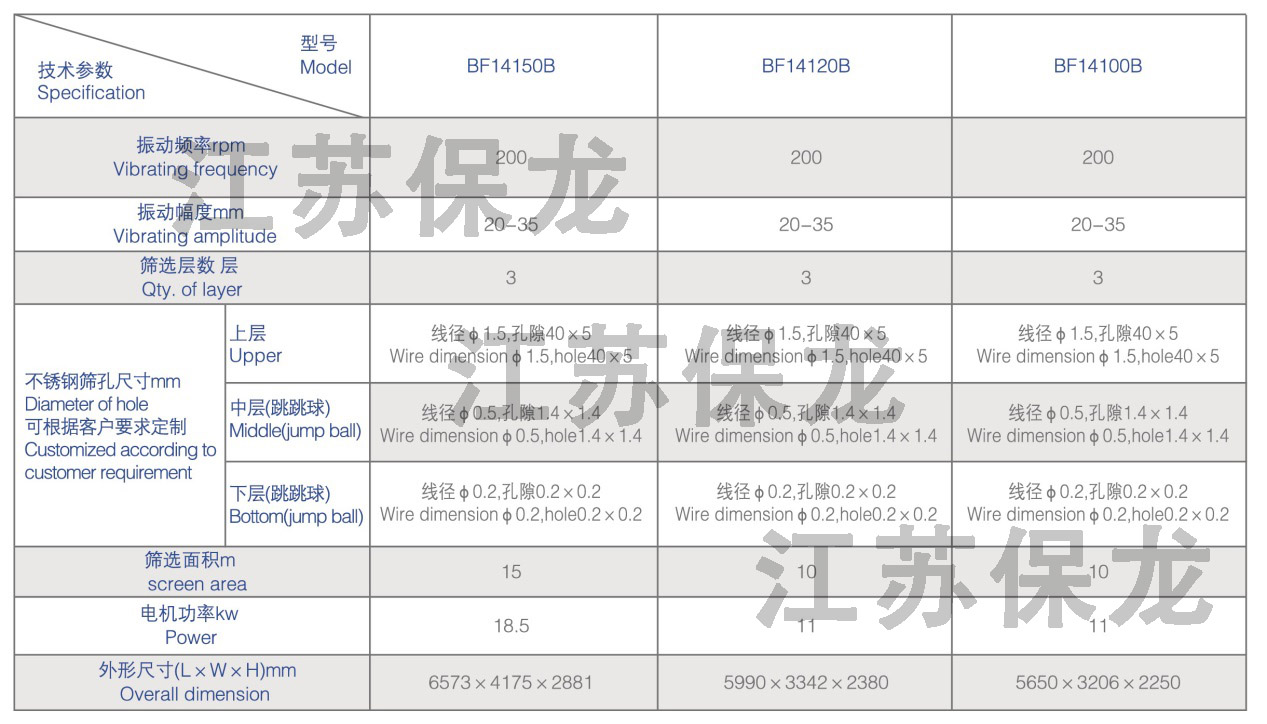

Main Technical Parameter of Flake Screen
